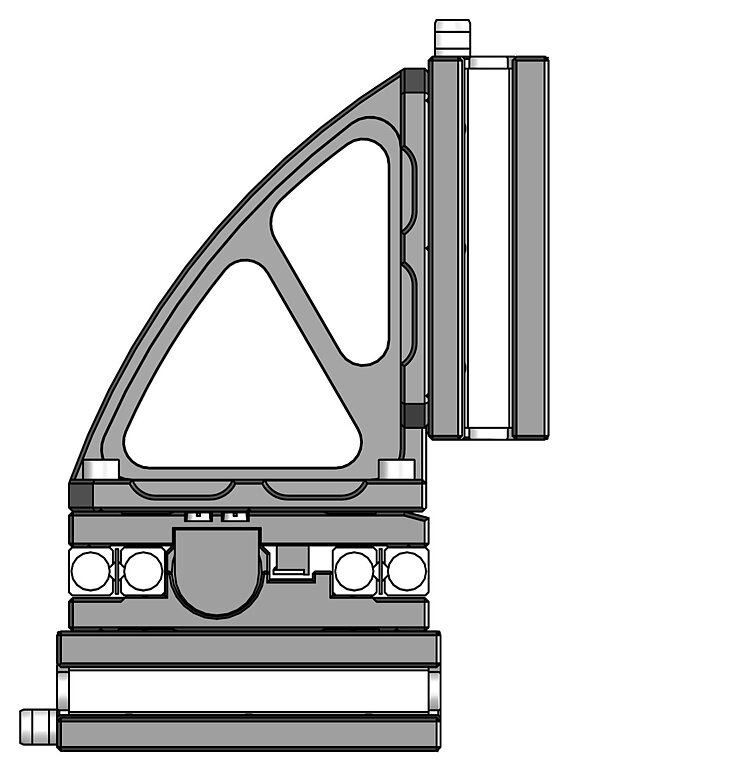

Q-145 Adapter Bracket

For Vertical Mounting of Q-545 Linear Stages

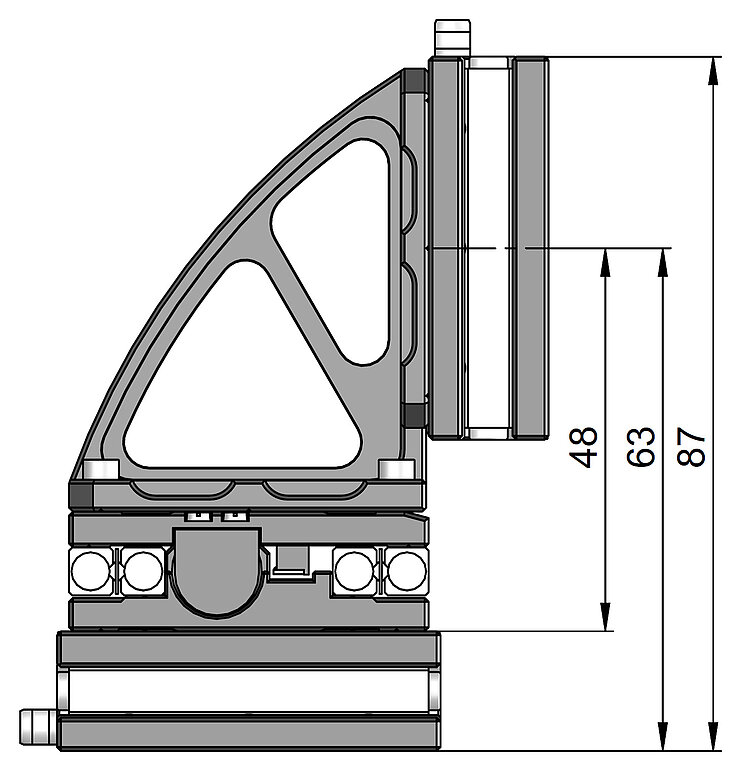

Q-145.1xxx, dimensions in mm

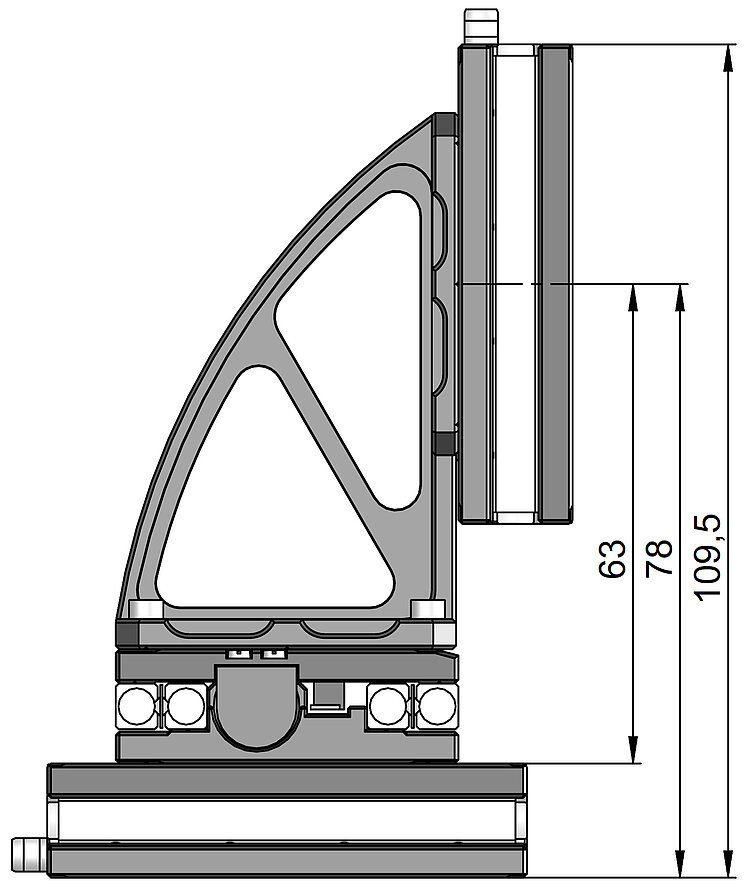

Q-145.2xx, dimensions in mm

Datasheet

Version / Date

2018-04-11

pdf - 283 KB

Version / Date

2018-04-11

pdf - 284 KB

3D Models

zip - 597 KB

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification.

Q-145.1001

Adapter bracket for vertical mounting of Q-545 linear stages with 13 mm travel range

Q-145.10U1

Adapter bracket for vertical mounting of Q-545 linear stages with 13 mm travel range, vacuum compatible to 10^-9 hPa

Q-145.200

Adapter bracket for vertical mounting of Q-545 linear stages with 26 mm travel range

Q-145.20U

Adapter bracket for vertical mounting of Q-545 linear stages with 26 mm travel range, vacuum compatible to 10^-9 hPa
