P-088.720
Round PICMA® Stack multilayer piezo actuator; 14 µm travel range (open loop); Ø 16 mm; length 16 mm; 7500 N feed force; vacuum-compatible to 10⁻⁹ hPa; solderable contacts

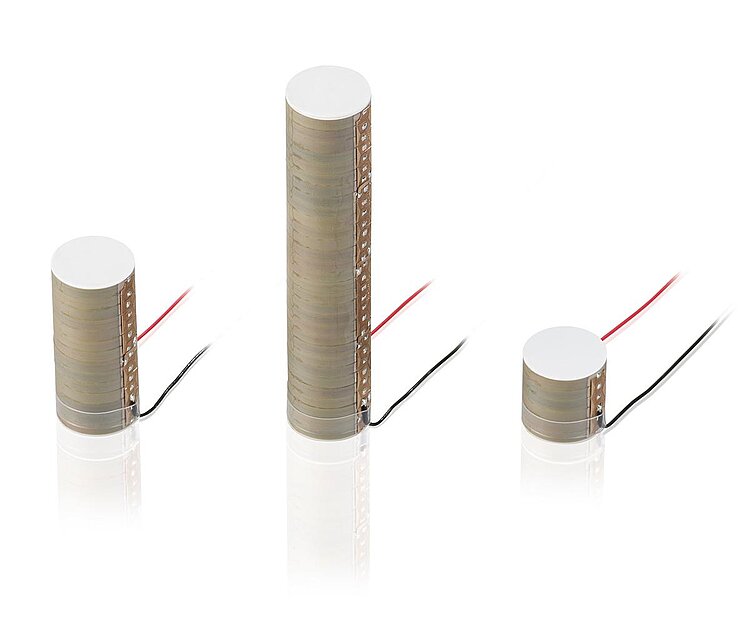

P-088 Round PICMA® Stack Multilayer Piezo Actuator
High Blocking Force
- Superior lifetime
- Ideal for dynamic operation
- Flexible, adaptable overall height
- OEM versions available without stranded wires
- UHV-compatible to 10-9 hPa

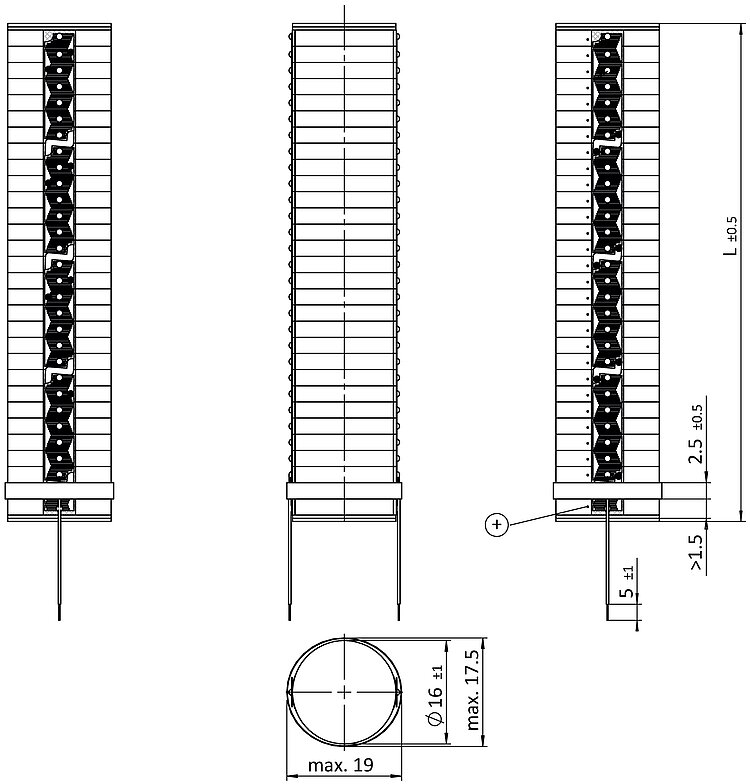

P-088 PICMA® Stack multilayer piezo actuator, dimensions in mm.
P-088 Round PICMA® Stack Multilayer Piezo Actuator
Product Description
Specifications
Downloads
Quote / Order
Multilayer stack actuators
The actuators are easily scaled, thanks to the stacked construction, flexible adaptation of the travel range is possible. The round cross section ensures easy integration.
UHV-compatible to 10-9 hPa. The actuators do not outgas and can be baked out at high temperatures.
PICMA® piezo linear actuators
Low operating voltage -20 to 100 V. Ceramic insulation. High reliability, long lifetime.
Possible modifications
Different heights, fast mounting according to customer requirements. Variety of shapes. Precision-ground end plates for reduced tolerances. Spherical tips.
Fields of application
Industry and research. For laser tuning, microdispensing, life sciences.
Specifications
Specifications
| Motion | P-088.720 | P-088.721 | P-088.740 | P-088.741 | P-088.780 | P-088.781 | Tolerance |
|---|---|---|---|---|---|---|---|
| Active axes | Z | Z | Z | Z | Z | Z | |
| Travel range in Z, open loop, at 0 to 100 V | 14 µm | 14 µm | 32 µm | 32 µm | 70 µm | 70 µm | +20 / -10 % |
| Drive Properties | P-088.720 | P-088.721 | P-088.740 | P-088.741 | P-088.780 | P-088.781 | Tolerance |
| Actuator type | Linear actuator | Linear actuator | Linear actuator | Linear actuator | Linear actuator | Linear actuator | |
| Drive type | PICMA® Stack | PICMA® Stack | PICMA® Stack | PICMA® Stack | PICMA® Stack | PICMA® Stack | |
| Operating voltage | -20 to 100 V | -20 to 100 V | -20 to 100 V | -20 to 100 V | -20 to 100 V | -20 to 100 V | |
| Electrical capacitance | 13 µF | 13 µF | 30 µF | 30 µF | 68 µF | 68 µF | ±20 % |
| Mechanical Properties | P-088.720 | P-088.721 | P-088.740 | P-088.741 | P-088.780 | P-088.781 | Tolerance |
| Stiffness in Z | 535 N/µm | 535 N/µm | 235 N/µm | 235 N/µm | 105 N/µm | 105 N/µm | |
| Resonant frequency in Z, unloaded | 68 kHz | 68 kHz | 35 kHz | 35 kHz | 17 kHz | 17 kHz | ±20 % |
| Blocking force | 7500 N | 7500 N | 7500 N | 7500 N | 7500 N | 7500 N | |
| Recommended preload for dynamic operation | 15 MPa | 15 MPa | 15 MPa | 15 MPa | 15 MPa | 15 MPa | |
| Maximum preload for constant force | 30 MPa | 30 MPa | 30 MPa | 30 MPa | 30 MPa | 30 MPa | |
| Cross section | round | round | round | round | round | round | |
| Material | Piezo ceramic; ceramic end surfaces made of Al2O3. | Piezo ceramic; ceramic end surfaces made of Al2O3. | Piezo ceramic; ceramic end surfaces made of Al2O3. | Piezo ceramic; ceramic end surfaces made of Al2O3. | Piezo ceramic; ceramic end surfaces made of Al2O3. | Piezo ceramic; ceramic end surfaces made of Al2O3. | |
| Piezo material | PIC252 | PIC252 | PIC252 | PIC252 | PIC252 | PIC252 | |
| Length L | 16 mm | 16 mm | 36 mm | 36 mm | 77 mm | 77 mm | ±0,5 mm |
| Outer diameter | 16 mm | 16 mm | 16 mm | 16 mm | 16 mm | 16 mm | ±1 mm |
| Miscellaneous | P-088.720 | P-088.721 | P-088.740 | P-088.741 | P-088.780 | P-088.781 | Tolerance |
| Operating temperature range | -40 to 150 °C | -40 to 150 °C | -40 to 150 °C | -40 to 150 °C | -40 to 150 °C | -40 to 150 °C | |
| Vacuum class | 10⁻⁹ hPa | 10⁻⁹ hPa | 10⁻⁹ hPa | 10⁻⁹ hPa | 10⁻⁹ hPa | 10⁻⁹ hPa | |
| Connector | Solderable contacts | Stranded wires, PTFE isolated, AWG 28, Ø 0.69 mm | Solderable contacts | Stranded wires, PTFE isolated, AWG 28, Ø 0.69 mm | Solderable contacts | Stranded wires, PTFE isolated, AWG 28, Ø 0.69 mm | |
| Recommended controllers / drivers | E-610, E-617, E-831, E-836 | E-610, E-617, E-831, E-836 | E-610, E-617, E-831, E-836 | E-610, E-617, E-831, E-836 | E-610, E-617, E-831, E-836 | E-610, E-617, E-831, E-836 | |
| Cable length | 0.1 m | 0.1 m | 0.1 m |
Blocking force and stiffness at 0 to 100 V.
Resonant frequency in Z, unloaded: Measured at 1 Vpp, unclamped. The value is halved for unilateral clamping.
Electrical capacitance: Measured at 1 Vpp, 1 kHz, RT.
Ask about customized versions.
Downloads
Datasheet
Documentation
Documentation
User Manual PZ259
P-882 – P-888 PICMA® Stack multilayer piezo actuators, P-080 PICMA® Stack multilayer ring actuators with inner hole, P-088 PICMA® Stack multilayer piezo actuators, round cross section
Version / Date
1.1.0 2021-09-27
pdf - 3 MB
Version / Date
1.1.0 2021-09-27
pdf - 3 MB
Ask for a free quote on quantities required, prices, and lead times or describe your desired modification.
P-088.721
Round PICMA® Stack multilayer piezo actuator; 14 µm travel range (open loop); Ø 16 mm; length 16 mm; 7500 N feed force; vacuum-compatible to 10⁻⁹ hPa; connecting wires
P-088.740
Round PICMA® Stack multilayer piezo actuator; 32 µm travel range (open loop); Ø 16 mm; length 36 mm; 7500 N feed force; vacuum-compatible to 10⁻⁹ hPa; solderable contacts
P-088.741
Round PICMA® Stack multilayer piezo actuator; 32 µm travel range (open loop); Ø 16 mm; length 36 mm; 7500 N feed force; vacuum-compatible to 10⁻⁹ hPa; connecting wires
P-088.780
Round PICMA® Stack multilayer piezo actuator; 70 µm travel range (open loop); Ø 16 mm; length 77 mm; 7500 N feed force; vacuum-compatible to 10⁻⁹ hPa; solderable contacts
P-088.781
Round PICMA® Stack multilayer piezo actuator; 70 µm travel range (open loop); Ø 16 mm; length 77 mm; 7500 N feed force; vacuum-compatible to 10⁻⁹ hPa; connecting wires
