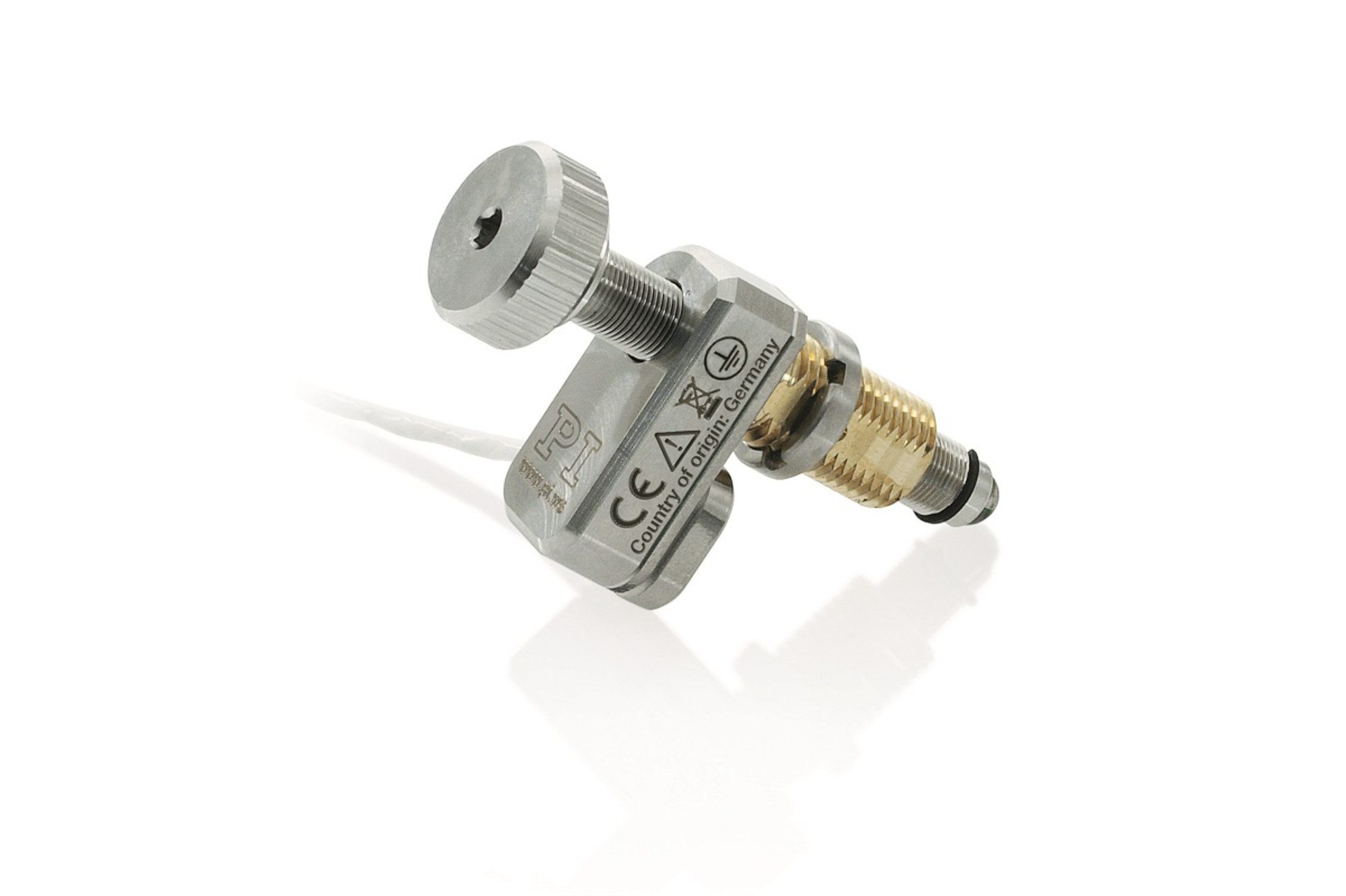

N-470.V PiezoMike Linear Actuator

Minimum Dimensions, High Forces, Stable Positioning, Vacuum to 10-6 hPa

  • Holding force 100 N
  • Step size 20 nm
  • Travel range 7 mm to 13 mm
  • Compact design
  • Feed force 22 N
  • Lifetime >50,000,000 steps
N-470.V PiezoMike Linear Actuator
Product Description Specifications Downloads Quote / Order

Linear actuator with piezo motors

Linear screw-type actuator with piezo inertia drive for high-resolution and stable positioning. Open-loop operation in full-step mode.

Piezo motors

Compact, inexpensive inertia drive principle (stick-slip). The drive is self-locking at rest, requires no current, and does not generate any heat. It holds the position with maximum force.

Alignment of mechanical and optomechanical components

Stable adjustment in optical paths. Long-term positioning: High stability at target position, reliable startup even after longer downtimes. High holding force and resolution by combining piezo actuators with mechanical thread translation. Vacuum-compatible to 10-6 hPa.

Specifications

Datasheet

Datasheet N-470.V

Version / Date
2023-07-13
pdf - 740 KB
Version / Date
2023-07-13
pdf - 744 KB

Downloads

Product Note

Product Note

Product Change Notification N-47x.xxx

Version / Date
2020-05-20
pdf - 225 KB
English

Datasheet

Datasheet

Datasheet N-470.V

Version / Date
2023-07-13
pdf - 740 KB
Version / Date
2023-07-13
pdf - 744 KB

Documentation

Documentation

User Manual MP125

N-470 PiezoMike Linear Actuator

Version / Date
2.1.0 2023-09-29
pdf - 2 MB
Version / Date
2.1.0 2023-09-29
pdf - 2 MB
Documentation

Short Instructions MP171EK

PiezoMike Linear Actuators: N-45x / N-47x / N-48x

Version / Date
1.1.0 03/2020
pdf - 1 MB
Version / Date
1.1.0 03/2020
pdf - 1 MB

3D Models

3D Models

3-D model N-470.12VY

Version / Date
2021-07-13
zip - 383 KB

Quote / Order

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification.

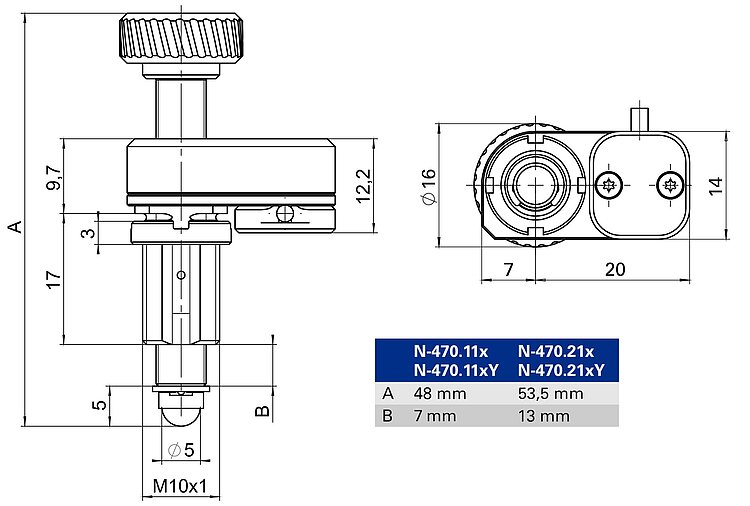

N-470.11V

PiezoMike linear actuator; piezoelectric inertia drive; 7 mm travel range; M10×1 thread; 22 N feed force; 2.4 mm/min maximum velocity; vacuum compatible to 10-6 hPa; 1 m cable length

N-470.11VY

PiezoMike linear actuator; piezoelectric inertia drive; 7 mm travel range; M10×1 thread; 22 N feed force; 2.4 mm/min maximum velocity; vacuum compatible to 10-6 hPa; 1 m cable length; turned cable exit

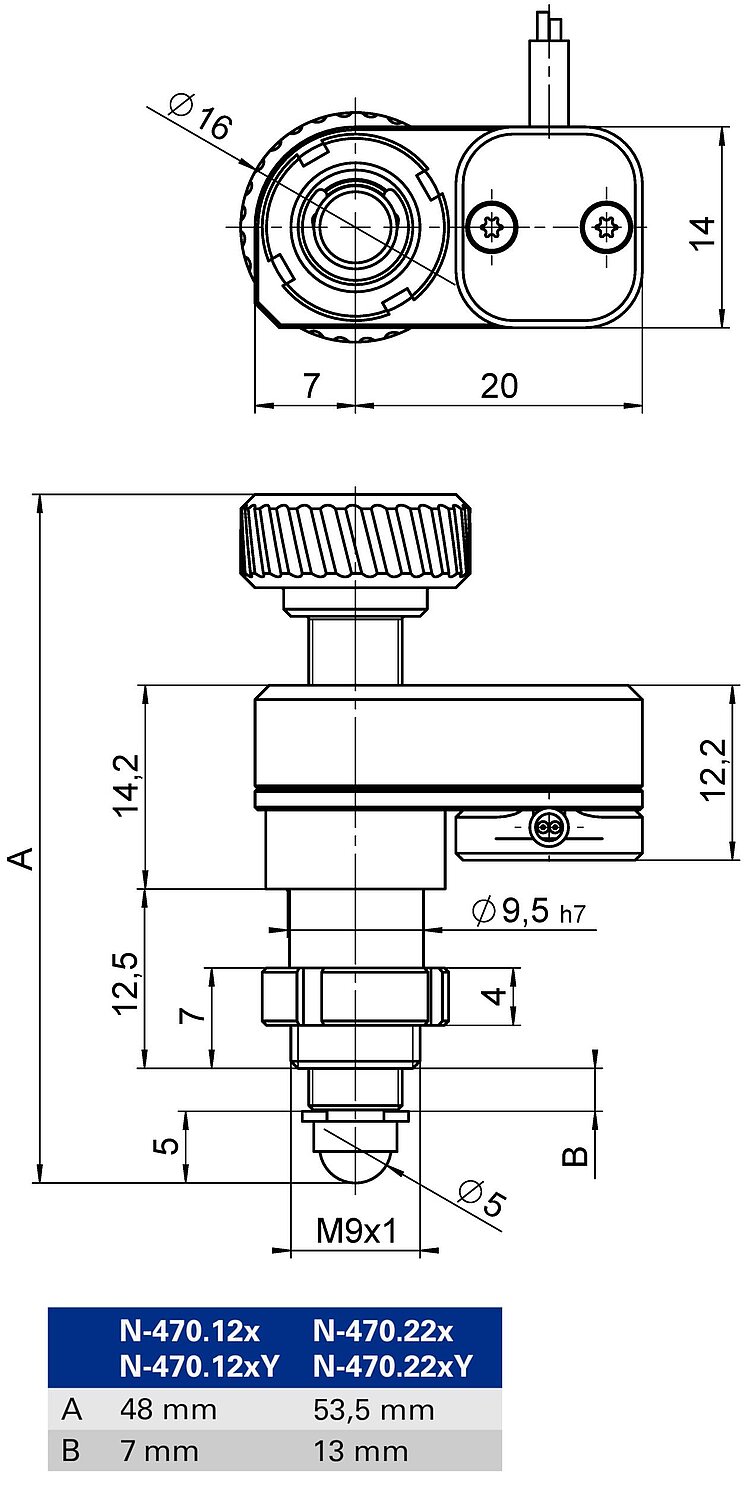

N-470.12V

PiezoMike linear actuator; piezoelectric inertia drive; 7 mm travel range; 9.5 mm (0.375") clamping shank; 22 N feed force; 2.4 mm/min maximum velocity; vacuum compatible to 10-6 hPa; 1 m cable length

N-470.21V

PiezoMike linear actuator; piezoelectric inertia drive; 13 mm travel range; M10×1 thread; 22 N feed force; 2.4 mm/min maximum velocity; vacuum compatible to 10-6 hPa; 1 m cable length

N-470.21VY

PiezoMike linear actuator; piezoelectric inertia drive; 13 mm travel range; M10×1 thread; 22 N feed force; 2.4 mm/min maximum velocity; vacuum compatible to 10-6 hPa; 1 m cable length; turned cable exit

N-470.22V

PiezoMike linear actuator; piezoelectric inertia drive; 13 mm travel range; 9.5 mm (0.375") clamping shank; 22 N feed force; 2.4 mm/min maximum velocity; vacuum compatible to 10-6 hPa; 1 m cable length
