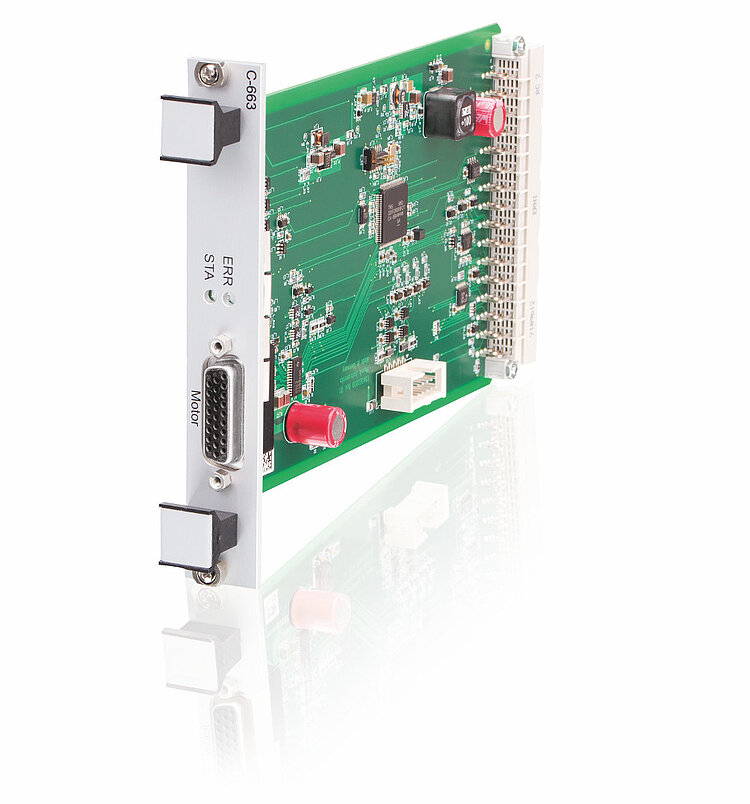

C-663.12C885 Mercury Step Stepper Motor Controller Module
For the C-885 PIMotionMaster Modular Controller System
- High microstep resolution
- Fast-running motor (output voltage 48 V, even at lower operating voltage)
- Closed-loop operation of 2-phase stepper motors
- Support for external sensors
- ID chip detection for fast startup
Mercury Step controller module for 2-phase stepper motors
1 axis. Microstep resolution: 1/2048 full step. Closed-loop operation. Point-to-point motion, trapezoidal velocity profile. Fast-running motor, even at lower operating voltage.
Extensive functionality
Powerful macro command language. Nonvolatile macro storage, e.g., for stand-alone operation with autostart macro. Data recorder. ID chip for fast startup. Parameter changing during operation. Extensive software support, e.g., for LabVIEW, dynamic libraries for Windows and Linux.
Interfaces
Differential signal transmission for digital (A/B) encoder signals. TTL inputs for limit and reference point switches. Input for RS-422 signals for index switch. I/O lines (analog/digital) for automation.
Plug-and-play installation in the C-885 PIMotionMaster
Can be inserted in any free slot. Automatic detection and external communication (USB, Ethernet) by the processor and interface module of the C-885. Can be expanded with optional digital inputs and outputs. Power via the power supply of the C-885.
Specifications
Specifications
C-663.12C885 | |
---|---|
Function | Mercury Step stepper motor controller module, for C-885 PIMotionMaster modular multi-axis controller system |
Drive types | 2-phase stepper motor |
Axes | 1 |
Supported functions | Startup macro; data recorder for recording operating data such as velocity, position or position error; internal safety circuitry: Watchdog timer; ID chip detection (for future use) |
Motion and control | C-663.12C885 |
---|---|
Controller type | PID, parameter changing during operation |
Dynamics profile | Trapezoidal velocity profile, point-to-point motion |
Microstep resolution | 1/2048 full step |
Encoder input | A/B quadrature, TTL, RS-422; 60 MHz |
Limit switches | 2 × TTL, programmable |
Reference point switch | 1 × TTL, programmable |
Index switch | 1 x RS-422 for index pulse |
Stall detection | Automatic motor stop when a programmable position error is exceeded (only in conjunction with sensor) |
Electrical properties | C-663.12C885 |
---|---|
Max. output voltage | 0 to 48 V (via voltage transformer at lower operating voltage) for direct control of stepper motors |
Max. output power | 60 W |
Average output power | 48 W |
Power consumption, full load | 48 W (max.) |
Power consumption without load | 3 W |
Current limitation per motor phase | 2.5 A |
Interfaces and operation | C-663.12C885 |
---|---|
Communication interfaces | USB or Ethernet, via C-885.M1 / C-885.M2 Digital Processor and Interface Module |
Motor / sensor connection | HD Sub-D 26 (f) |
I/O lines | Optional with C-885.iD Digital Interface Module for PIMotionMaster: 4 analog/digital inputs (0 to 5V/TTL), 4 digital outputs (TTL) |
Command set | PI General Command Set (GCS) |
User software | PIMikroMove |
Application programming interfaces | API for C / C++ / C# / VB.NET / MATLAB / python, drivers for LabVIEW |
Downloads
Datasheet
Documentation
User Manual C663T0004
C-663.12C885 Motion Controller Module for Stepper Motors, for C-885 PIMotionMaster
User Manual MS241
C-663.12 Mercury Step Stepper Motor Controller
User Manual C663T0005
Parameter Handling when Upgrading to C-663.12 Controllers
General Software Documentation
User Manual SM164E
Updating controller firmware with PIFirmwareManager
Quote / Order
Ask for a free quote on quantities required, prices, and lead times or describe your desired modification.
