A-101.050
PIglide RB linear air bearing module, motion platform 50 mm × 50 mm, travel range 50 mm

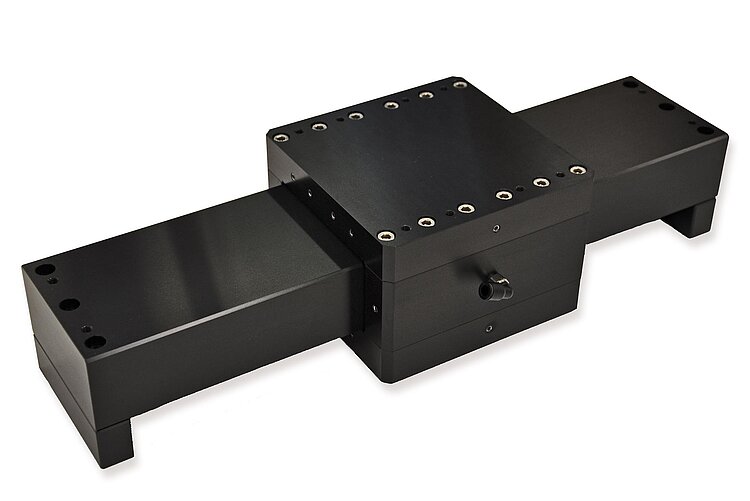

A-10x PIglide RB Linear Air Bearing Module
Friction Free, Ideal for Positioning, Scanning, Metrology
- Ideal for scanning applications or high-resolution positioning
- Cleanroom compatible
- Size of the motion platform to 300 mm × 300 mm
- Travel ranges to 1 m
- Load capacity to 775 kg
- Straightness / flatness to 0.5 μm per 25 mm
- Pitch / roll / yaw to 1.2 µrad per 25 mm

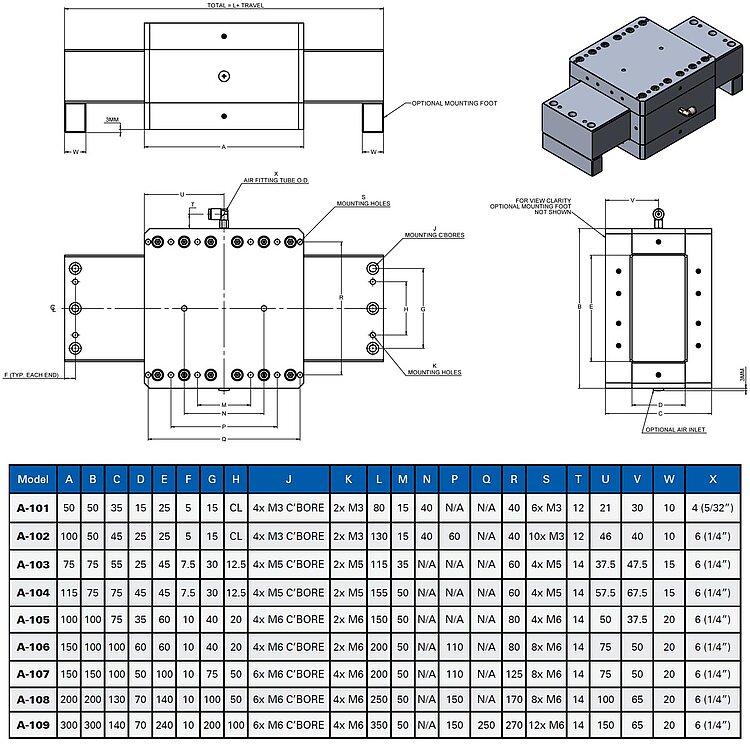

A-10x.xxx, dimensions in mm
A-10x PIglide RB Linear Air Bearing Module
Product Description
Specifications
Downloads
Quote / Order
Linear air bearings of the PIglide RB series are exactly right for applications that need smooth, precise, linear motion. The air bearing modules replace ball or crossed roller guides and are easy to integrate. They offer improved straightness, angular deviation, and repeatability compared to stage units with ball guides, especially for travel ranges longer than 100 mm.
Because air bearings are basically friction free, they work without stiction on approach or during operation, even under maximum load. Air bearings work without making contact and with purified air, and are virtually maintenance and wear free.
Accessories and options
- Air preparation kit
- Mounting Feet
- Custom configurations on request
- Several motion platforms on one guide
- Constructions with moving guide
Specifications
Specifications
| Size of the motion platform / mm × mm | Travel range / mm | Vertical load capacity* / N | Lateral load capacity* / N |
|---|---|---|---|---|
A-101 | 50 × 50 | 50 to 200 | 130 | 75 |
A-102 | 50 × 100 | 50 to 300 | 260 | 260 |
A-103 | 75 × 75 | 50 to 300 | 350 | 195 |
A-104 | 75 × 115 | 50 to 300 | 540 | 540 |
A-105 | 100 × 100 | 50 to 300 | 630 | 370 |
A-106 | 100 × 150 | 50 to 600 | 950 | 950 |
A-107 | 150 × 150 | 50 to 750 | 1580 | 790 |
A-108 | 200 × 200 | 50 to 1000 | 2950 | 1475 |
A-109 | 300 × 300 | 50 to 1000 | 7600 | 2210 |
| Travel ranges to 300 mm | Travel ranges to 600 mm | Travel ranges to 1000 mm |
|---|---|---|---|
Straightness / flatness** | ±1.25 μm | ±2.5 μm | ±5 μm |
Straightness / flatness, per 25 mm travel range** | ±0.25 μm | ±0.25 μm | ±0.25 μm |
Position stability** | ±0.05 μm | ±0.05 μm | ±0.05 μm |
Pitch / yaw, per 25 mm travel range** | 1.2 µrad | 1.2 µrad | 1.2 µrad |
Pitch / yaw, overall** | 10 µrad | 20 µrad | 30 µrad |
* The specified load capacities assume an operating pressure of 80 psi (550 kPa). For an alternative operating pressure, contact PI for determining other load capacities.
** Precision specifications depending on load, orientation, and external forces on the bearing. Contact PI for application-specific parameters.
Downloads
Datasheet
Documentation
Documentation
User Manual A-10x
User Manual A-10x
Version / Date
2016-10-28
pdf - 594 KB
English
3D Models
3D Models
A-10x 3-D model
zip - 2 MB
White Paper
White Paper
Air Bearings: When to Use and When to Avoid in Your Motion Application
All Positioning Stages are not Created Equal. Author: Matt Reck, PI
Version / Date
WP4003 2015-09
pdf - 3 MB
English
Quote / Order
Ask for a free quote on quantities required, prices, and lead times or describe your desired modification.
Size of the motion platform 50 mm × 50 mm
A-101.100
PIglide RB linear air bearing module, motion platform 50 mm × 50 mm, travel range 100 mm
A-101.150
PIglide RB linear air bearing module, motion platform 50 mm × 50 mm, travel range 150 mm
A-101.200
PIglide RB linear air bearing module, motion platform 50 mm × 50 mm, travel range 200 mm
Size of the motion platform 50 mm × 100 mm
A-102.050
linear air bearing module, 50 mm × 100 mm motion platform, travel range 50 mm
A-102.100
PIglide RB linear air bearing module, motion platform 50 mm × 100 mm, travel range 100 mm
A-102.150
PIglide RB linear air bearing module, motion platform 50 mm × 100 mm, travel range 150 mm
A-102.200
PIglide RB linear air bearing module, motion platform 50 mm × 100 mm, travel range 200 mm
A-102.300
PIglide RB linear air bearing module, motion platform 50 mm × 100 mm, travel range 300 mm
Size of the motion platform 75 mm × 75 mm
A-103.050
PIglide RB linear air bearing module, motion platform 75 mm × 75 mm, travel range 50 mm
A-103.100
PIglide RB linear air bearing module, motion platform 75 mm × 75 mm, travel range 100 mm
A-103.150
PIglide RB linear air bearing module, motion platform 75 mm × 75 mm, travel range 150 mm
A-103.200
PIglide RB linear air bearing module, motion platform 75 mm × 75 mm, travel range 200 mm
A-103.300
PIglide RB linear air bearing module, motion platform 75 mm × 75 mm, travel range 300 mm
A-104.050
PIglide RB linear air bearing module, motion platform 75 mm × 115 mm, travel range 50 mm
Size of the motion platform 75 mm × 115 mm
A-104.100
PIglide RB linear air bearing module, motion platform 75 mm × 115 mm, travel range 100 mm
A-104.150
PIglide RB linear air bearing module, motion platform 75 mm × 115 mm, travel range 150 mm
A-104.200
PIglide RB linear air bearing module, motion platform 75 mm × 115 mm, travel range 200 mm
A-104.300
PIglide RB linear air bearing module, motion platform 75 mm × 115 mm, travel range 300 mm
Size of the motion platform 100 mm × 100 mm
A-105.050
PIglide RB linear air bearing module, motion platform 100 mm × 100 mm, travel range 50 mm
A-105.100
PIglide RB linear air bearing module, motion platform 100 mm × 100 mm, travel range 100 mm
A-105.150
PIglide RB linear air bearing module, motion platform 100 mm × 100 mm, travel range 150 mm
A-105.200
PIglide RB linear air bearing module, motion platform 100 mm × 100 mm, travel range 200 mm
A-105.300
PIglide RB linear air bearing module, motion platform 100 mm × 100 mm, travel range 300 mm
Size of the motion platform 100 mm × 150 mm
A-106.050
PIglide RB linear air bearing module, motion platform 100 mm × 150 mm, travel range 50 mm
A-106.100
PIglide RB linear air bearing module, motion platform 100 mm × 150 mm, travel range 100 mm
A-106.150
PIglide RB linear air bearing module, motion platform 100 mm × 150 mm, travel range 150 mm
A-106.200
PIglide RB linear air bearing module, motion platform 100 mm × 150 mm, travel range 200 mm
A-106.300
PIglide RB linear air bearing module, motion platform 100 mm × 150 mm, travel range 300 mm
A-106.450
PIglide RB linear air bearing module, motion platform 100 mm × 150 mm, travel range 450 mm
A-106.600
PIglide RB linear air bearing module, motion platform 100 mm × 150 mm, travel range 600 mm
Size of the motion platform 150 mm × 150 mm
A-107.050
PIglide RB linear air bearing module, motion platform 150 mm × 150 mm, travel range 50 mm
A-107.100
PIglide RB linear air bearing module, motion platform 150 mm × 150 mm, travel range 100 mm
A-107.150
PIglide RB linear air bearing module, motion platform 150 mm × 150 mm, travel range 150 mm
A-107.200
PIglide RB linear air bearing module, motion platform 150 mm × 150 mm, travel range 200 mm
A-107.300
PIglide RB linear air bearing module, motion platform 150 mm × 150 mm, travel range 300 mm
A-107.450
PIglide RB linear air bearing module, motion platform 150 mm × 150 mm, travel range 450 mm
A-107.600
PIglide RB linear air bearing module, motion platform 150 mm × 150 mm, travel range 600 mm
A-107.750
PIglide RB linear air bearing module, motion platform 150 mm × 150 mm, travel range 750 mm
Size of the motion platform 200 mm × 200 mm
A-108.050
PIglide RB linear air bearing module, motion platform 200 mm × 200 mm, travel range 50 mm
A-108.100
PIglide RB linear air bearing module, motion platform 200 mm × 200 mm, travel range 100 mm
A-108.150
PIglide RB linear air bearing module, motion platform 200 mm × 200 mm, travel range 150 mm
A-108.200
PIglide RB linear air bearing module, motion platform 200 mm × 200 mm, travel range 200 mm
A-108.300
PIglide RB linear air bearing module, motion platform 200 mm × 200 mm, travel range 300 mm
A-108.450
PIglide RB linear air bearing module, motion platform 200 mm × 200 mm, travel range 450 mm
A-108.600
PIglide RB linear air bearing module, motion platform 200 mm × 200 mm, travel range 600 mm
A-108.750
PIglide RB linear air bearing module, motion platform 200 mm × 200 mm, travel range 750 mm
A-108.A00
PIglide RB linear air bearing module, motion platform 200 mm × 200 mm, travel range 1000 mm
Size of the motion platform 300 mm × 300 mm
A-109.050
PIglide RB linear air bearing module, motion platform 300 mm × 300 mm, travel range 50 mm
A-109.100
PIglide RB linear air bearing module, motion platform 300 mm × 300 mm, travel range 100 mm
A-109.150
PIglide RB linear air bearing module, motion platform 300 mm × 300 mm, travel range 150 mm
A-109.200
PIglide RB linear air bearing module, motion platform 300 mm × 300 mm, travel range 200 mm
A-109.300
PIglide RB linear air bearing module, motion platform 300 mm × 300 mm, travel range 300 mm
A-109.450
PIglide RB linear air bearing module, motion platform 300 mm × 300 mm, travel range 450 mm
A-109.600
PIglide RB linear air bearing module, motion platform 300 mm × 300 mm, travel range 600 mm
A-109.750
PIglide RB linear air bearing module, motion platform 300 mm × 300 mm, travel range 750 mm
A-109.A00
PIglide RB linear air bearing module, motion platform 300 mm × 300 mm, travel range 1000 mm
